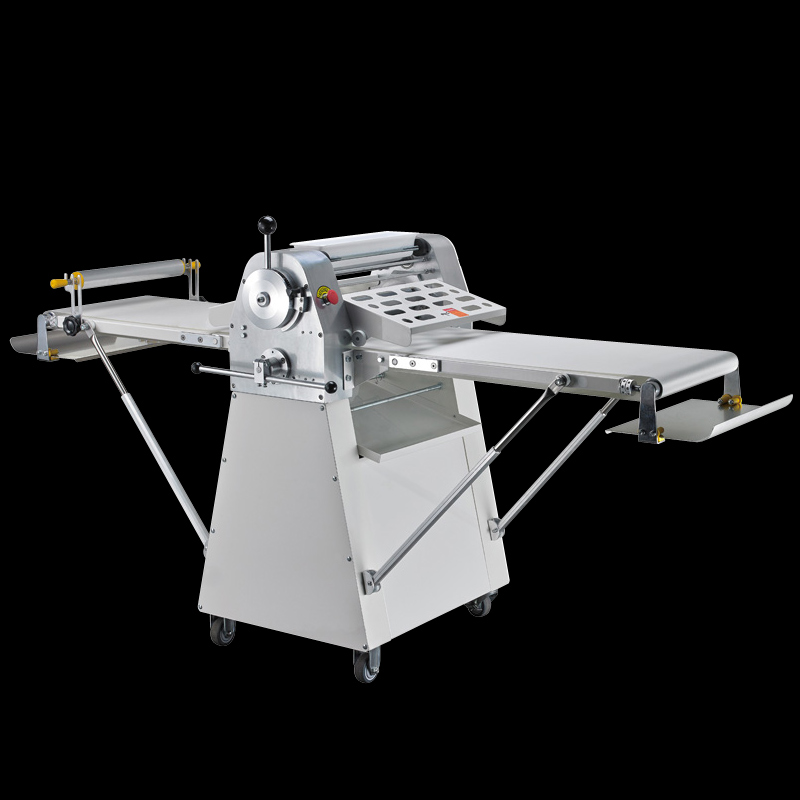

Reversible Sheeter
1. Final thickness can be fixed.
2. All series of Dough Sheeter use PU conveyor.
3. Applications : pastries , croissant , pies , biscuit and etc.
2. All series of Dough Sheeter use PU conveyor.
3. Applications : pastries , croissant , pies , biscuit and etc.
Specification
| Model No. | 450B,450B S/S | 520B,520B S/S | 520C,520C S/S | 650B,650B S/S | 650C,650C S/S |
| Conveyor spec(mm) | 430x2000 | 515x2000 | 515x2400 | 630x2400 | 630x2900 |
| Press roller(mm) | Ø88x435 | Ø88x520 | Ø88x520 | Ø88x635 | Ø88x635 |
| HP | 1/2 | 1/2 | 1 | 1 | 1 |
| Output Power(KW) | 0.38 | 0.38 | 0.75 | 0.75 | 0.75 |
| LxWxH(mm) | 2100x760x1100 | 2100x850x1100 | 2500x850x1100 | 2500x960x1100 | 3000x960x1100 |
*S/S：Coating plates replace by stainless steel plates.
