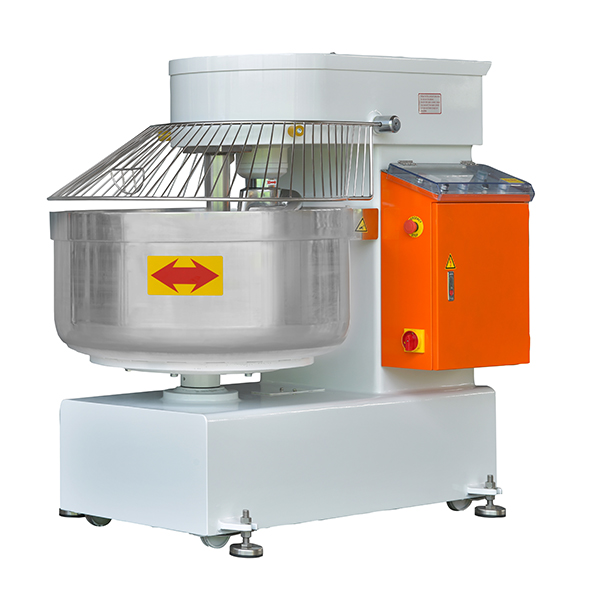

Automatic Spiral Mixer
Automatic Spiral Mixer

Automatic Spiral Mixer

Explain

Function:
This mixer can mix powder ball, crisp and stuff containing less than 75% water. The machine has fast and slow two kinds of speed, and the mixing tube moves round left and right, to knead, rub, pinch, mix, twist, and sprain. It can easily mix all kinds of powder balls within the shortest time.
Features:
Strong power, large mixing amount, and the powder ball is with high elasticity. It is especially good for stuff with simple operation. Stainless still tube safety cover and mixer conform to hygiene standard, and it is suitable for large-factory.

Specification

Model No. KL-203 KL-204 KL-205 KL-206

Flour (kg)

75 100 125 150
Dough (kg) 120 160 200 240
Capacity (L) 220 260 300 360
Tank Diameter (mm) 850 850 900 1000
Tank Depth (mm) 400 460 475 460
Hook R.P.M 115-230 115-230 115-230 115-230
Tank R.P.M (hp) 25 25 25 25
Horsepower (hp) 10-2 12-2 15-3 15-3
Machine(L*W*H mm) 1480x900x1330 1480x900x1330 1530x940x1350 1600x1050x1350
Packing(L*W*H mm) 1640x1060x1660 1640x1060x1660 1700x1050x1660 1820x1190x1660
N.W (kg) 870 880 900 930
G.W (kg) 1050 1060 1200 1230
